Widgets
Complete reference of every dashboard widget — KPI cards, charts, heatmaps, streaks, strategy compliance, review, score, goals, journal, and notebook.
Widgets
Tradeways ships 55+ configurable widgets that you can place on any dashboard or page-pinned widget area. Widgets range from single-number KPI cards to full-width charts, heatmaps, and live notebook embeds. Every widget can carry its own title, account, filter, and type-specific settings.
This page is the complete widget catalog. For how to add, configure, and arrange widgets, see Dashboard.
KPI Cards
Small two-by-two cards that surface a single number with a comparison to the prior period.
| Widget | Description |
|---|---|
| YTD P&L | Year-to-date profit and loss in the account currency. |
| Win Rate | Percentage of winning trades out of all closed trades with W/L/BE split. |
| Trades | Total number of closed trades, with average R:R. |
| Avg Trade | Average profit/loss per closed trade. |
| Profit Factor | Ratio of gross profit to gross loss. |
| Expectancy | Expected value per trade based on win rate and average win/loss. |
| R:R | Average realized winner-to-loser ratio. |
| Commission | Total commissions paid across all closed trades. |
| Largest Win/Loss | Largest single winning and losing trade side by side. |
| Max Drawdown | Maximum peak-to-trough decline in the equity curve. |
| Avg Holding Time | Average duration from entry to exit across closed trades. |
| Quality Rate | Share of trades that hit TP before SL (requires TP/SL levels). |
| Technical PF | Profit factor based on TP/SL exits only. |
| Sharpe Ratio | Risk-adjusted return using daily standard deviation. |
| Sortino Ratio | Like Sharpe but penalizes only downside volatility. |
| Kelly Criterion | Optimal position sizing fraction from win rate and payoff ratio. |
Streaks
| Widget | Description |
|---|---|
| Trade Result Streak | Current and max consecutive winning/losing trades. |
| Day Result Streak | Current and max consecutive winning/losing trading days. |
| Week Result Streak | Current and max consecutive winning/losing trading weeks. |
Charts
| Widget | Description |
|---|---|
| Equity Curve | Cumulative P&L line chart over time. Optional drawdown overlay. |
| Day of Week | Bar chart comparing P&L or trade count by weekday. |
| Time of Day | Bar chart showing performance by hour of day. |
| Distribution | Pie or bar chart breaking down trades by symbol, direction, or class. |
| Cumulative Trades | Running total of trades over time as a line chart. |
| Trade P&L | P&L per trade rendered as bars. |
| Daily P&L | P&L per trading day rendered as bars. |
| Price Chart | Candlestick chart with timeframe toolbar and trade entry/exit overlays. |
Heatmaps
| Widget | Description |
|---|---|
| Month Heatmap | Calendar-style P&L heatmap for a single month. |
| Week Heatmap | Compact P&L heatmap for the current week. |
| Monthly Heatmap | Twelve-month P&L grid for the year. |
| Year Heatmap | GitHub-style daily activity heatmap for the full year. |
Strategy & Compliance
These widgets reflect the strategies you have defined in Strategies. Most accept a scope setting — All strategies, a single strategy, or a strategy group.
| Widget | Description |
|---|---|
| Strategy Snapshot | One-strategy summary of compliance and recent activity. |
| Strategy Comparison | Table comparing strategies across P&L, win rate, and compliance. |
| Best / Worst Strategies | Top and bottom strategies in the current scope. |
| Strategy Distribution | Trade or P&L share across strategies as a pie or bar chart. |
| Compliance Score | Current strategy compliance percentage. |
| Compliance Heatmap | Daily compliance intensity across a calendar grid. |
| Compliance Trend | Compliance history rendered as a trend line. |
| Rule Impact | P&L delta between compliant and non-compliant trades, per rule. |
| Top Broken Rules | Rules with the highest failure rate. |
| Rule Categories | Pass/fail mix broken down by rule category. |
| Goal Progress | Tracks quantitative rule thresholds toward their target. |
| Manual Check Completion | Completion rate of manual review rules. |
Review
Widgets that surface progress on the trade review queue.
| Widget | Description |
|---|---|
| Review Queue | Outstanding review workload for a strategy. |
| Review Aging | Outstanding reviews grouped by age (today, 1–3 days, 4+ days). |
| Review Velocity | Reviewed vs unreviewed flow over time. |
| Reviewed vs Unreviewed | Performance split between reviewed and unreviewed trades. |
| Review Compliance | Compliance score within the filtered review scope. |
Score & Goals
The Tradeways Score is an integrated 0–100 performance index. Goal widgets connect to recurring objectives defined in Goals.
| Widget | Description |
|---|---|
| Tradeways Score | Your 0–100 performance index across edge, risk, consistency, and discipline. |
| Goals Status | Counts of active, at-risk, achieved, and breached goals. |
| Goals on Track | Share of goals currently on track or already achieved. |
| Goals Needing Attention | Goals currently at risk or breached. |
| Next Period Rollover | Countdown to the next recurring goal period ending. |
Journal & Notebook
Embed journal content directly on the dashboard so trade notes and review pages are one glance away. See Journal for the full editor experience.
| Widget | Description |
|---|---|
| Notebook | Embeds a notebook page with inline editing. Source can be today's note, this week's note, or any specific page. |
| Journal Entries | Recent journal entries with type icons and relative timestamps. Filter by entry type. |
| Journal Folders | Interactive folder tree of your journal pages. Optionally scope to one root folder. |
Lists
| Widget | Description |
|---|---|
| Recent Trades | Table of the most recent closed trades with key columns. |
Widget Picker

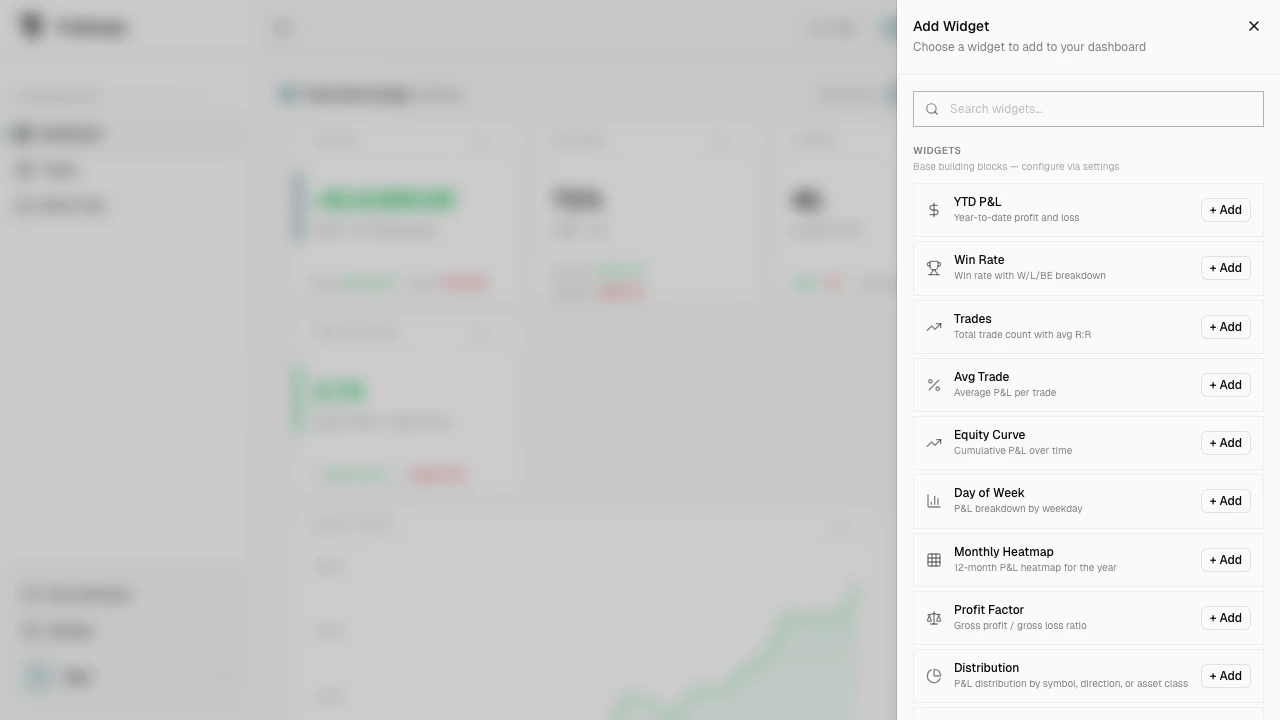

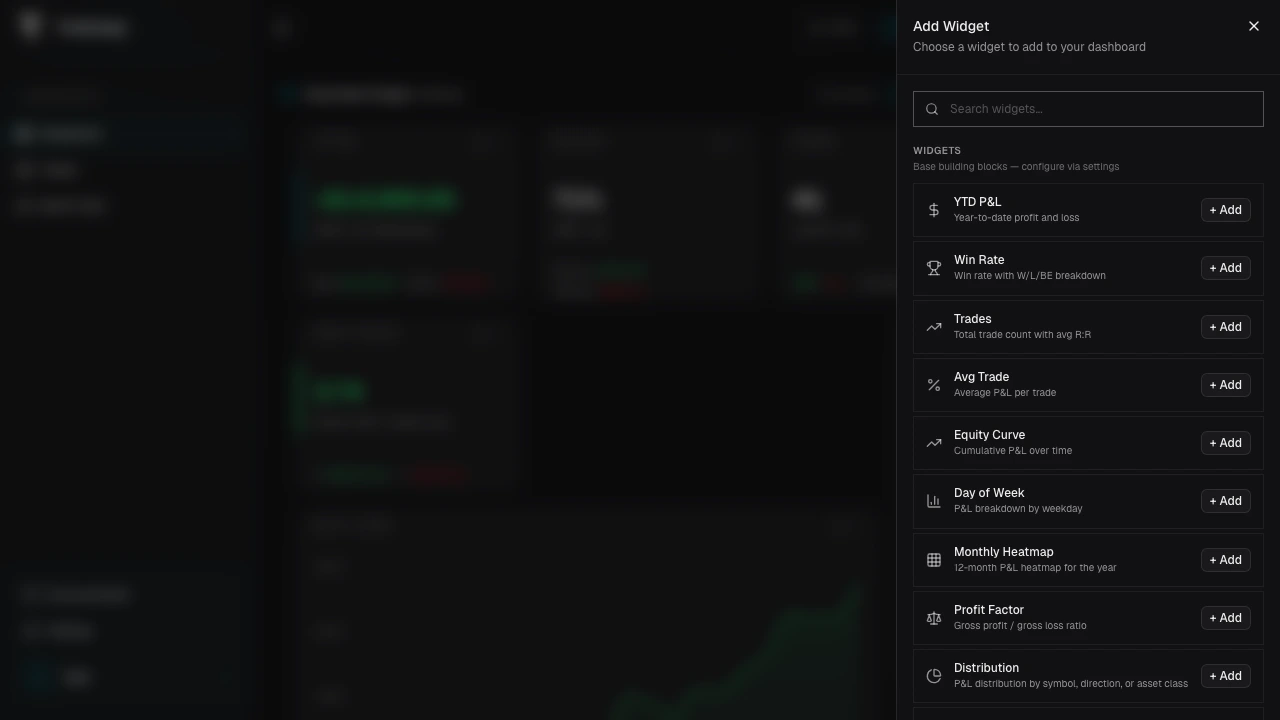

In edit mode, click Add Widget to open the picker sheet. It is organized into Smart Insights, the full widget list, Quick Add presets, and dynamic entries built from your account data (Your Symbols, Your Asset Classes, Your Tags). Hover a widget to see a live preview. Use the search bar to filter across every section.
See Dashboard › Adding Widgets for the full picker walkthrough.
Widget Settings
Click the gear icon on any widget in edit mode to open its settings dialog. The dialog has two tabs.
Settings Tab
| Setting | Applies To | Description |
|---|---|---|
| Title | All widgets | Custom display title that overrides the default heading. |
| Account | All widgets | Pin the widget to a specific trading account instead of following the active account. |
| Distribution Dimension | Distribution chart | Choose what to break down by: Symbol, Direction, or Asset Class. |
| Drawdown Overlay | Equity Curve | Toggle a drawdown area overlay on the equity curve chart. |
| Show Weekends | Year Heatmap | Include Saturday and Sunday cells in the yearly grid. |
| Risk-Free Rate | Sharpe, Sortino | Annualized risk-free rate (%) used in the ratio calculation. Defaults to 0%. |
| Source | Notebook | Which notebook to embed: Today's note, This week's note, or Specific page. |
| Notebook | Notebook | When source is "Specific page", pick which page to display. |
| Open Mode | Notebook, Journal Entries, Journal Folders | How clicking an entry opens it: Dialog, Edit in widget, or Navigate. |
| Sort Order | Journal Entries | Order of entries: Newest first, Oldest first, or Alphabetical. |
| Entry Types | Journal Entries | Filter which entry types to show: Daily, Weekly, Session, Trade, and/or Page. |
| Number of Entries | Journal Entries | Maximum number of entries to display: 5, 10, 15, or 20. |
| Root Folder | Journal Folders | Scope the tree to a specific top-level folder, or show all folders. |
| Symbol | Price Chart | The instrument symbol to chart. Defaults to ES. |
| Default Timeframe | Price Chart | Initial candlestick timeframe (1m, 5m, 15m, 1h, 4h, 1D). |
| Show Trade Overlays | Price Chart | Toggle trade entry/exit markers on the chart. |
| Scope | Strategy & Compliance, Review | All strategies, a single strategy, or a strategy group. |
| Ranking | Comparison, Best/Worst, Rule Impact, Top Broken | Which metric the list ranks by (P&L, win rate, compliance, frequency). |
| Trend Range | Compliance Heatmap, Compliance Trend, Velocity | How far back the trend extends (e.g., last 30/90/365 days). |
| Distribution Mode | Strategy Distribution | Break down by trade count or by P&L share. |
| Goal | Strategy Goal Progress | Which strategy goal the widget tracks. |
Filter Tab
Each widget can carry its own trade filter independent of the global dashboard filter. The filter tab exposes the same dimensions as the global filter: date range, status, side, result, instruments, symbols, tags, entry price, position size, weekdays, and time of day.
| Setting | Description |
|---|---|
| Filter Mode | Replace — widget filter fully replaces the global filter. Layer — widget fields override per-dimension, unset fields fall through from the global filter. |
| Filter | Configure any combination of the available filter dimensions for this widget. |
Account Pinning
By default each widget shows data from the currently active account. Pin a widget to a specific account in its settings and it will always render that account's data — even after you switch the header account. Pinned widgets show a small badge with the account name. If the account is later removed or sharing is revoked, the widget renders an "account unavailable" placeholder.
Page Widgets
In addition to the full dashboard, page widgets can be pinned above the main content on Daily, Weekly, Monthly, Yearly, Trades, Lifetime, Review, and Strategies. See Page Widgets for the per-page layout details.
